# Configuration Items

## By default, we will sync your SonicWall configuration types into your PSA.

Typically, configuration types are set manually in your PSA.  With this integration, we will, by default, add or update these in your PSA.

[Initial Setup](https://kb.mspcentric.io/sonicwall/configuration-items#Initial)
[Disable Configuration Sync](https://kb.mspcentric.io/sonicwall/configuration-items#disable)
[Configuration Types](https://kb.mspcentric.io/sonicwall/configuration-items#config)

---

### Initial Setup

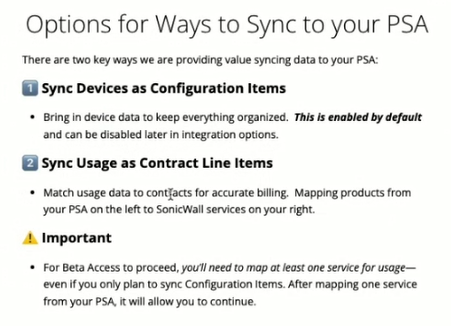

When you connect your PSA for the first time, this feature is automatically included.  Configuration types or Assets in some PSAs are the details behind the services that you offer from a vendor.

- Configuration item syncing is turned on by default in all the PSAs offered.
- - It can be disabled only after the first full sync is completed.
- Every time you sync your account, configurations will be synced as well. So usage and configuration items will come over at the same sync interval, whether automatic, scheduled, or manual.
- Each configuration item created will be associated with the service that was mapped in the initial mapping.
- If you have deleted a configuration item that we attempt to update, it will be recreated.

  ![](https://kb.mspcentric.io/hs-fs/hubfs/image-png-Dec-03-2024-09-51-48-4151-PM.png?width=451&height=326&name=image-png-Dec-03-2024-09-51-48-4151-PM.png)

---

### Disable Configuration Sync

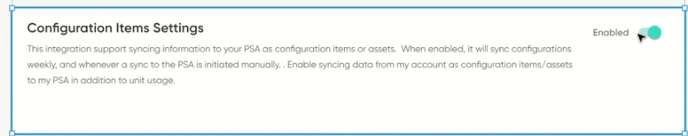

- This feature can be turned off in the Billing Config section of the application.
  ![](https://kb.mspcentric.io/hs-fs/hubfs/image-png-Dec-03-2024-09-38-34-1505-PM.png?width=688&height=136&name=image-png-Dec-03-2024-09-38-34-1505-PM.png)
- When it is toggled off, no new syncing of configuration items is created, but any ones that were already created will stay.
- When it is initially synced, turned off, and then re-enabled again in the future, it will continue to update the pre-synced items.



---

### Configuration Types

SonicWall has 4 different Configuration types that will be represented. The configuration types are (exact spelling and capitalization required)

- SonicWall Firewall
- SonicWall SMA 1000
- SonicWall Switch
- SonicWall Access Points

Each configuration item has a default Billing Code, which will always be "**Taxable Products**" when it is first created. If you wish to change the Billing Code on a configuration item, you can do so after it has been created in your PSA.

Below is a chart of each of the configurations types and the data that we can pull from your PSA.

| **#** | **Question** | **SonicWall Firewall** | **SonicWall SMA 1000** | **SonicWall Access Points** | **SonicWall Switch** |
| --- | --- | --- | --- | --- | --- |
| 1 | Total Secure/Advanced total Secure/Email Protection (Anti-Spam and Anti-Phishing) | YES |  |  |  |
| 2 | Email Anti-Virus Comprehensive | YES |  |  |  |
| 3 | Email DLP and Compliance | YES |  |  |  |
| 4 | 24x7 Support | YES | YES | YES | YES |
| 5 | CSC Management and Reporting | YES | YES | YES |  |
| 6 | CSC Analytics (Includes Reporting) | YES |  | YES |  |
| 7 | CSC Management - Advanced |  |  | YES |  |
| 8 | Gateway AV/Anti-Spyware/Intrusion/Prevention/App Control/App Visualization | YES |  | YES |  |
| 9 | Content Filtering: Premium Edition | YES |  | YES |  |
| 10 | Standard Support | YES | YES | YES |  |
| 11 | Try and Buy |  |  | YES |  |
| 12 | Gateway AV/Anti-Spyware/Intrusion Prevention/App Control/App |  |  | YES |  |
| 13 | Content Filtering: Premium Edition Advanced |  |  | YES |  |
| 14 | Stateful High Availability | YES |  | YES |  |
| 15 | Capture Advanced Threat Protection | YES | YES | YES |  |
| 16 | SonicOS Expanded | YES |  | YES |  |
| 17 | Active/Active Clustering Service | YES |  | YES |  |
| 18 | Capture Lite Threat Protection |  |  | YES |  |
| 19 | Global VPN Client | YES |  | YES |  |
| 20 | SSL VPN | YES |  | YES |  |
| 21 | 24x7 Support Lite |  |  | YES |  |
| 22 | Remote Implementation Service | YES |  | YES |  |
| 23 | CSC Management | YES |  | YES |  |
| 24 | WAN Acceleration Software | YES |  | YES |  |
| 25 | Firmware Version | YES | YES | YES | YES |
| 26 | Zero Touch Enabled | YES | YES | YES | YES |
| 27 | Email Security Transition | YES |  |  |  |
| 28 | Software and Firmware Updates | YES | YES | YES | YES |
| 29 | CSC Management Lite | YES |  |  |  |
| 30 | CSC Management and 7-Day Reporting | YES |  |  |  |
| 31 | Comprehensive/Advanced Gateway Security Suite | YES |  |  |  |
| 32 | Deep Packet Inspection for SSL (DPI-SSL) | YES |  |  |  |
| 33 | Deep Packet Inspection for SSH (DPI-SSH) | YES |  |  |  |
| 34 | Analyzer | YES | YES |  |  |
| 35 | Content Filtering Client | YES |  |  |  |
| 36 | DPI-SSL Enforcement | YES |  |  |  |
| 37 | Syslog Analytics | YES |  |  |  |
| 38 | Number of SSLVPN licenses | YES | YES | YES | YES |
| 39 | Cloud Backup Enabled | YES | YES | YES | YES |
| 40 | HA Cluster Role | YES | YES | YES | YES |
| 41 | Last Phone-Home time | YES | YES | YES | YES |
| 42 | IP Address of managing GMS/NSM/CMS | YES | YES | YES | YES |
| 43 | Hardware Warranty | YES | YES | YES | YES |
| 44 | Wireless Network Management |  |  |  | YES |
| 45 | Secure Cloud WiFi Management and Support (Basic) |  |  | YES |  |
| 46 | Wireless 24x7 Support |  |  | YES |  |
| 47 | Secure Cloud WiFi (Wireless IDP, MIDM, Rogue AP, RF Monitoring) |  |  | YES |  |
| 48 | Geo-IP & Botnet Filter |  | YES |  |  |
| 49 | Web Application Firewall (WAF) Tiered |  | YES |  |  |
| 50 | Web Application Firewall |  | YES |  |  |
| 51 | Virtual Assist | YES | YES |  |  |
| 52 | Primary node serial number | YES | YES |  |  |
| 53 | Named Support Rep |  | YES |  |  |
| 54 | FIPS Support |  | YES |  |  |
| 55 | Spike License |  | YES |  |  |
| 56 | Spike Upgrade |  | YES |  |  |
| 57 | Free-Trial Offer |  | YES |  |  |
| 58 | ViewPoint | YES | YES |  |  |
| 59 | Native Access | YES | YES |  |  |
| 60 | Connect Mobile | YES | YES |  |  |
| 61 | Advanced End Point Control | YES | YES |  |  |
| 62 | Concurrent User Count |  | YES |  |  |
| 63 | Node Upgrade |  | YES |  |  |
| 64 | MDR | YES |  |  |  |
| 65 | Federal Information Processing Standards (FIPS) | YES |  |  |  |
| 66 | External IDS Support | YES |  |  |  |
| 67 | Local CFS Responder | YES |  |  |  |
| 68 | DNS Filtering (Beta) | YES |  |  |  |
| 69 | Managed Appliances | YES |  |  |  |
| 70 | Native Access | YES |  |  |  |
| 71 | Connect Mobile | YES |  |  |  |
| 72 | Advanced End Point Control | YES |  |  |  |
| 73 | Central User Licenses | YES |  |  |  |
| 74 | Content Filtering: Standard Edition | YES |  |  |  |
| 75 | Threat Protection Service Suite | YES |  |  |  |
| 76 | Capture Client Premier | YES |  |  |  |
| 77 | HA Conversion License to Standalone unit | YES |  |  |  |
| 78 | DNS Filtering | YES |  |  |  |
| 79 | NSv Software | YES |  |  |  |
| 80 | Manage Volume Licensing | YES |  |  |  |
| 81 | Support 24x7 Onsite | YES |  |  |  |
| 82 | Gateway AV/Anti-Spyware/Intrusion Prevention/Application Firewall | YES |  |  |  |
| 83 | REST API Activation | YES |  |  |  |
| 84 | SonicWall Capture Cloud | YES |  |  |  |
| 85 | Intelligence Updates and Activation | YES |  |  |  |
| 86 | Secondary node serial number | YES |  |  |  |
| 87 | Model Upgrade | YES |  |  |  |
| 88 | Analytics E-Class 24x7 Software Support | YES |  |  |  |
| 89 | SonicWall Analytics On-Prem | YES |  |  |  |
| 90 | Health Check Tool | YES |  |  |  |
| 91 | DNS Security Service | YES |  |  |  |
| 92 | Advanced Protection Service Suite | YES |  |  |  |
| 93 | Global VPN Client Enterprise | YES |  |  |  |
| 94 | SonicOS Enhanced | YES |  |  |  |
| 95 | VLAN-3 Detail (Name, number) | YES |  |  |  |
| 96 | Type | YES |  |  |  |
| 97 | Gateway AV/Anti-Spyware/Intrusion Prevention | YES |  |  |  |
| 98 | VPN Upgrade | YES |  |  |  |
| 99 | Comprehensive gateway Security Suite | YES |  |  |  |
| 100 | Next-gen Anti-malware | YES |  |  |  |
| 101 | NSM Advanced | YES |  |  |  |
| 102 | Essential Protection Service Suite | YES |  |  |  |
| 103 | Gateway Anti-malware/Intrusion Prevention/App Control | YES |  |  |  |
| 104 | Capture Client Advanced | YES |  |  |  |
| 105 | Endpoint Detection & Response | YES |  |  |  |
| 106 | Comprehensive Anti-Spam Service | YES |  |  |  |
| 107 | Content filtering Service | YES |  |  |  |
| 108 | NSM Essential | YES |  |  |  |
| 109 | NSM Management and 7-Day Reporting | YES |  |  |  |
| 110 | Content Filtering / Device Control / Vulnerability Intelligence | YES |  |  |  |
| 111 | Application Visualization and Control | YES |  |  |  |
| 112 | NSM Reporting and Analytics | YES |  |  |  |
| 113 | NSM Management | YES |  |  |  |
| 114 | VPN Policy Upgrade | YES |  |  |  |
| 115 | WAN Acceleration Client | YES |  |  |  |
| 116 | BGP | YES |  |  |  |
